Xinghang Electric Loaders
Jay-Hawk Diggers is now an authorised dealer for Xinghang, one of China’s leading makers of compact electric machinery. First up is the XHD500: an all-wheel-drive loader — no diesel, no fuel tank, just charge her up and get to work.
Authorised Dealer
Factory machines. Local dealer.
We work directly with Jining Xinghang Machinery as their authorised dealer in Australia. You get factory-direct pricing, and you deal with a Brisbane business you can call, visit and hold to account.
You buy from Jay-Hawk, not from an overseas website. Freight, import and paperwork are sorted before it reaches you, so you get a machine that’s ready to work.
See it in Brisbane
Come to our Arana Hills yard and look it over before you buy.
One local contact
Questions, parts or attachments: call Jeremy directly. No time zones, no translation apps.
Delivered Australia wide
Pick up from Arana Hills, or we’ll arrange freight to your door.
Parts direct from the factory
Genuine Xinghang parts and attachments, ordered through our supplier line.
Xinghang · Mini Electric Wheel Loader

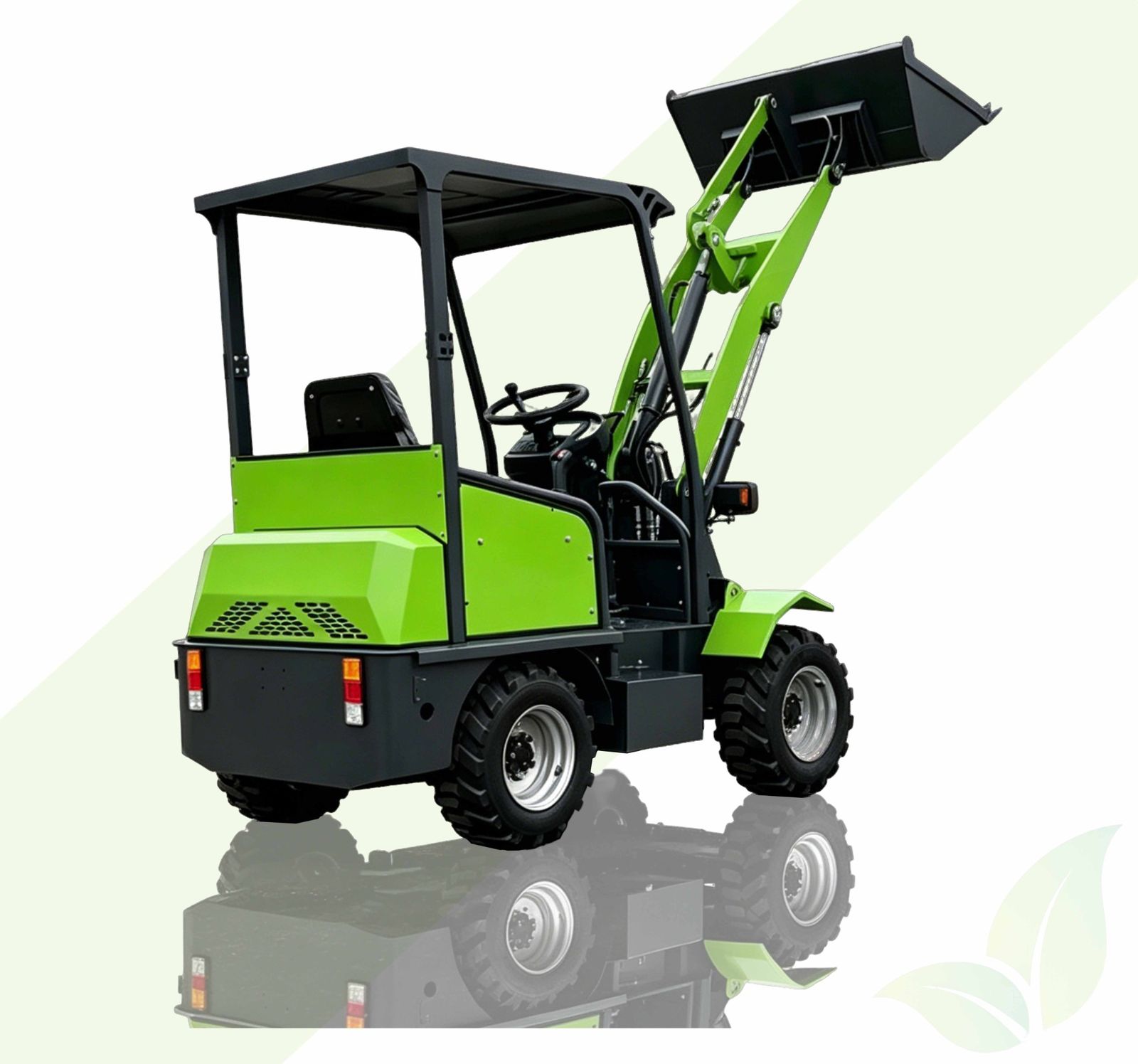

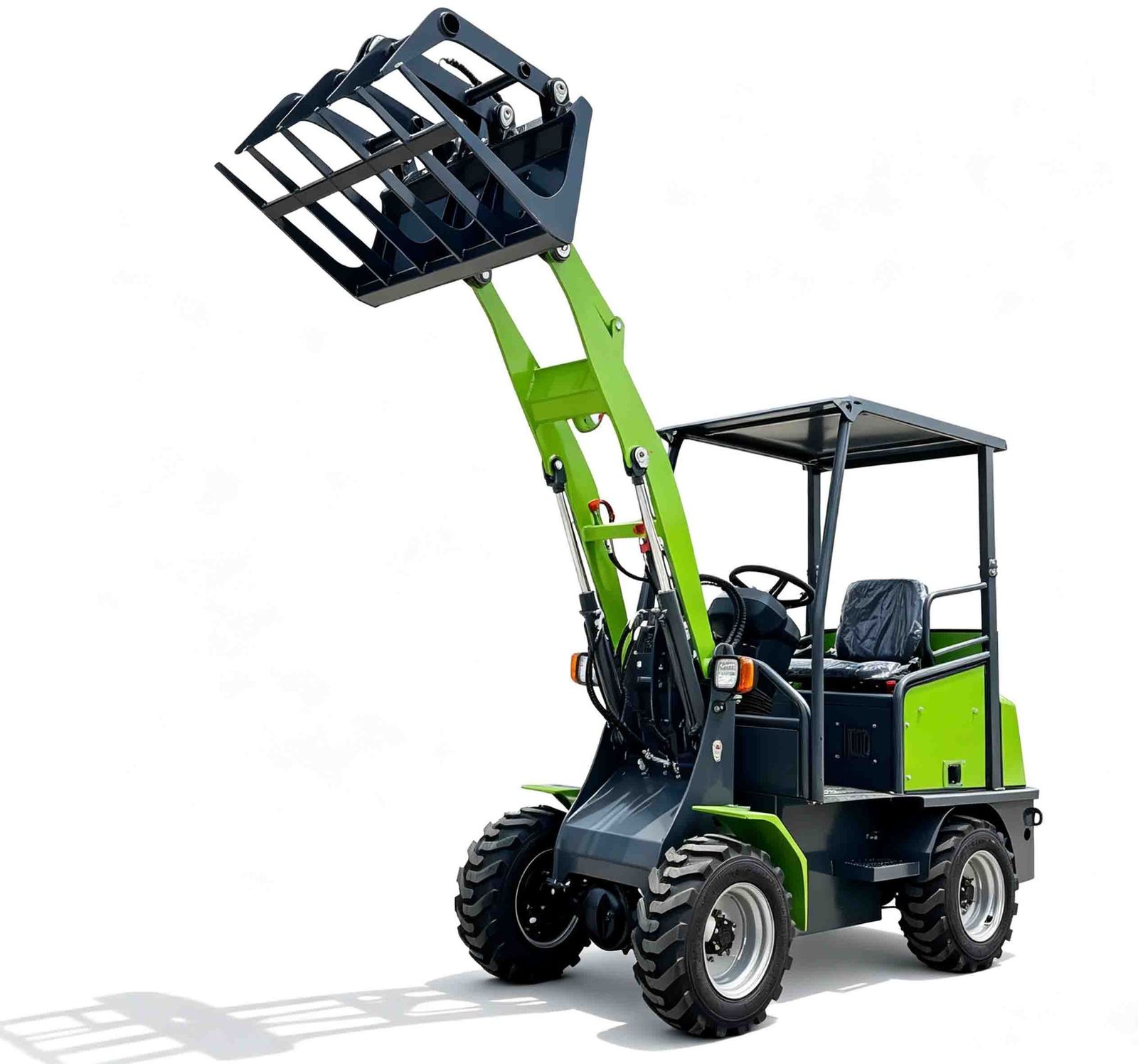

XHD500
0.5 Tonne Rated Load
A compact, fully electric loader for farms, stables, acreage and yards. It’s quiet enough to run around livestock and clean enough to use inside a shed. It charges overnight from a standard power point.
- 500kg rated load · 2.6m lift height
- 4kW drive motor + 3kW hydraulic motor (flat-wire)

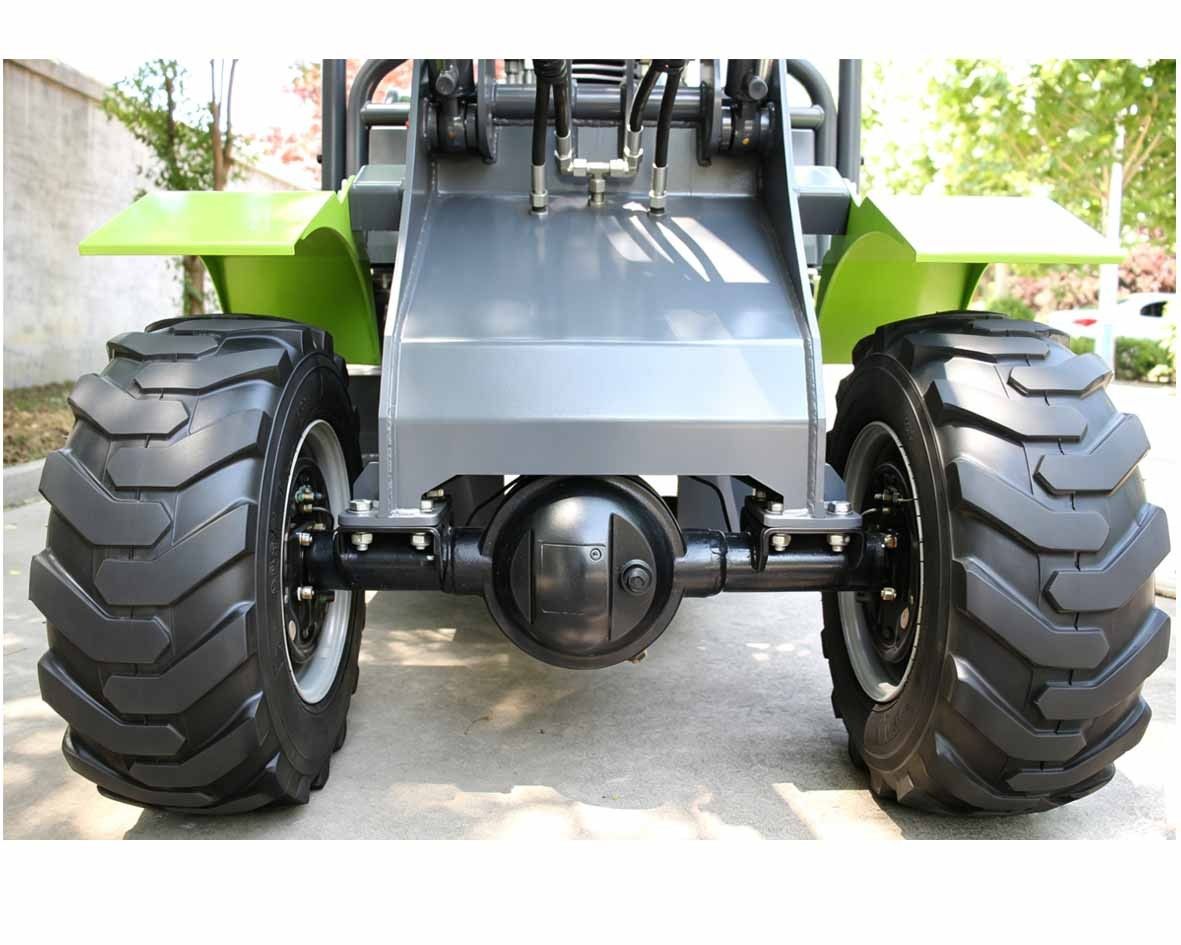

- Full-time all-wheel drive, manganese steel chassis
- 150A Lithium battery: 4–6 hours per charge

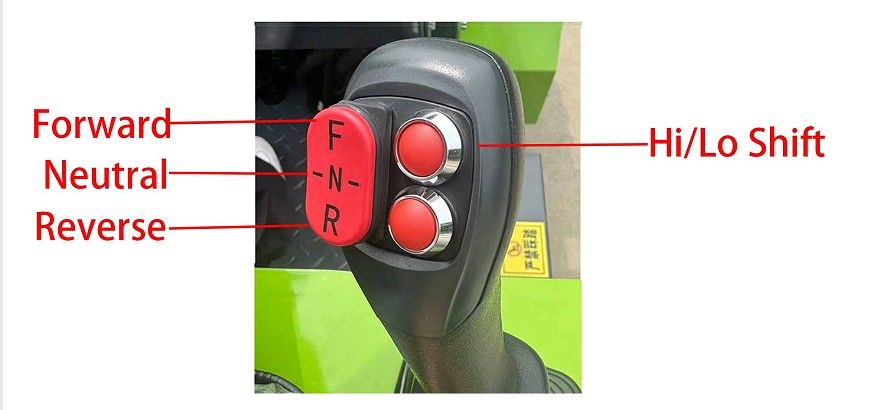

- Single integrated joystick for drive, speed and bucket

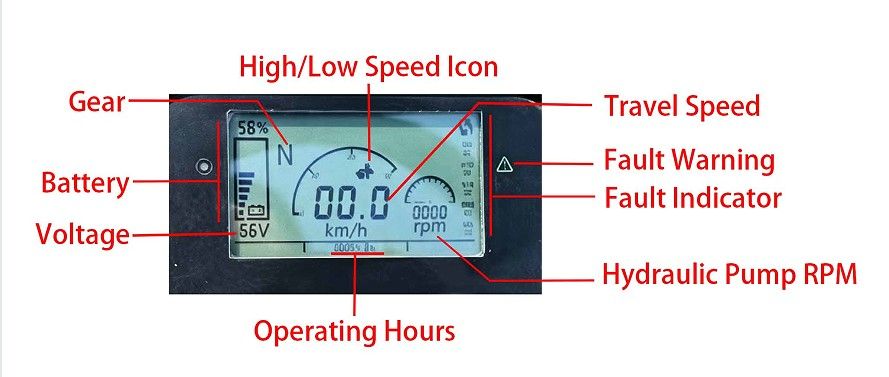

- CAN-bus LCD dash with battery level and fault codes

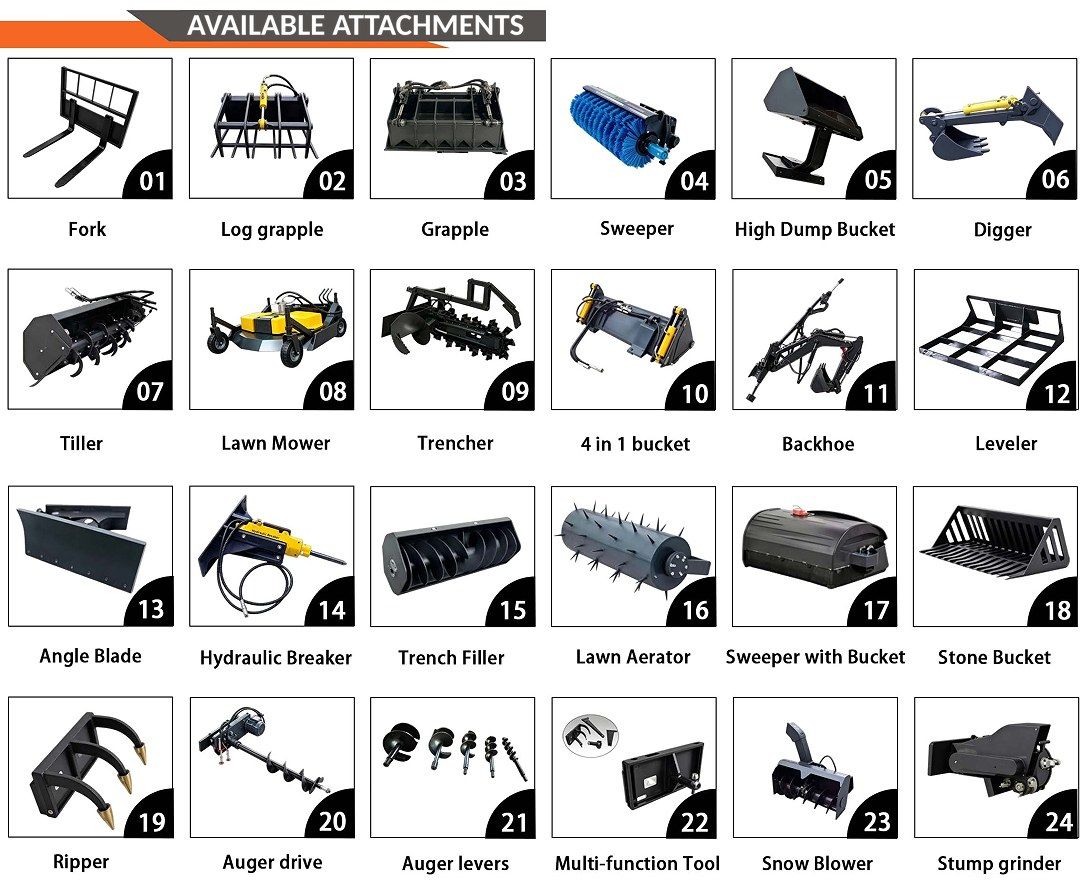

- Quick-coupler for forks, grapples and more
$15,990 AUD
Inc. GST · Pickup Arana Hills · Aust-wide delivery available
Full Specifications
| Rated load | 500 kg |
|---|---|
| Machine weight | 1240 kg |
| Dimensions (L × W × H) | 3260 × 1050 × 2130 mm |
| Wheelbase | 1450 mm |
| Lifting height | 2600 mm |
| Discharge height | 1600 mm |
| Bucket size | 1050 × 680 mm |
| Bucket & chassis material | Manganese steel |
| Drive motor | 4 kW |
| Hydraulic motor | 3 kW |
| Battery | 150A Lithium |
| Run time (continuous) | 4–6 hours |
| Charge time | 8 hours |
| Speed (high / low) | 0–14.5 / 0–8 km/h |
| Drive | All-wheel drive |
| Steering | Fluid-link |
| Tyres | 23 × 8.5-12 |
Why Electric
Plug in. Get to work.
No diesel to cart around, no fumes in the shed, and almost nothing to service. The XHD500 does the everyday lifting and carting jobs on a property, quietly.
About Xinghang
Built in Jining. Backed in Brisbane.

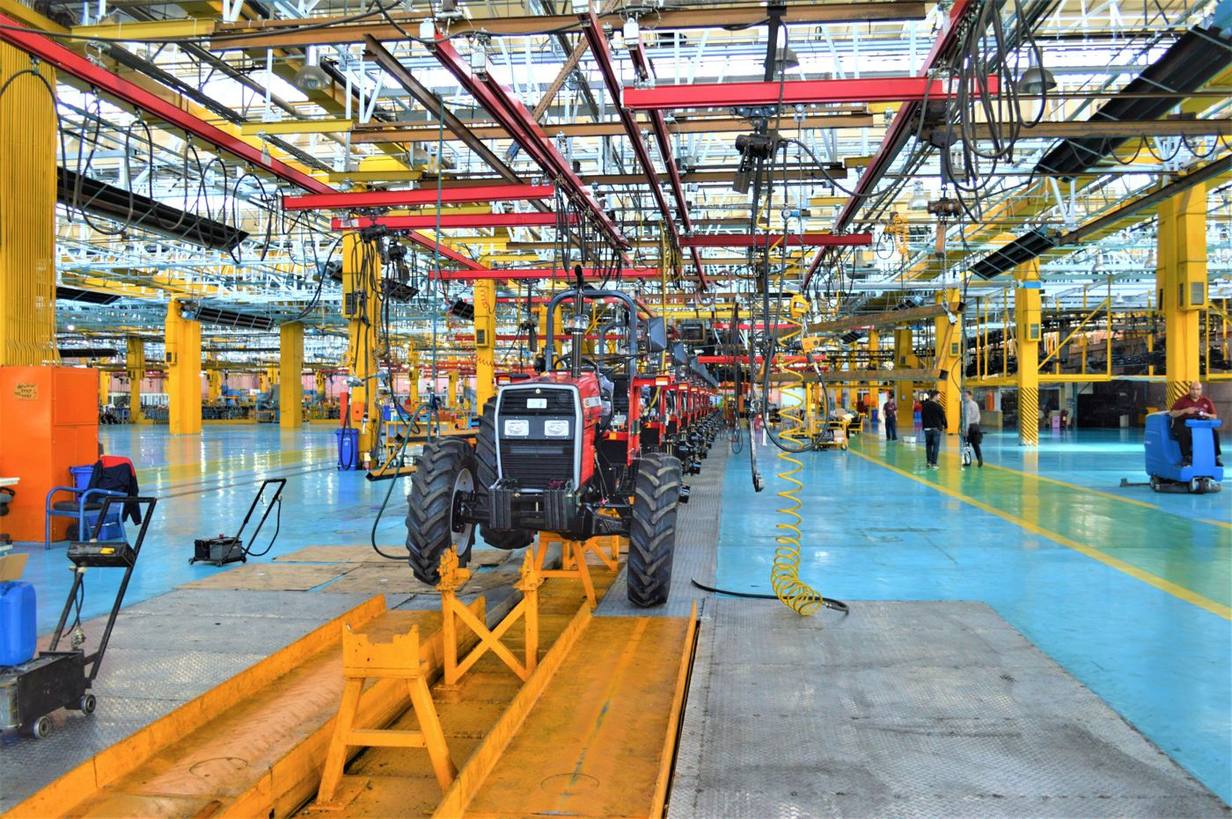

Jining Xinghang Machinery Manufacturing Co., Ltd. is based in Jining, Shandong Province, a major construction machinery hub in China. It was one of the country’s early makers of new-energy compact machinery.
The range covers mini electric wheel loaders, skid steers, telescopic loaders, mini dumpers and excavators. Machines are exported worldwide and carry CE, Euro V and ISO 9001 certification.
Want one on your property?
Ask about pricing, availability, attachments or a look at the yard. We’ll get back to you within one business day.
